How many types of the decoiler?

Feb,08,2023 << Return list

The decoiler is one of the essential and important equipment in the production line. One of its functions is to support the steel coil by tightening the inner hole of the steel coil; The other is to send the steel strip head into the feeding part by rotating with the cooperation of the straightener.

decoiler

There are three types of the decoiler. They are Manual decoiler、Hydraulic decoiler and Electric decoiler.

Manual decoiler

 Passive Type

 Simple Structure

 Equipped with manual  wheel and brake, convenient for decoiling material

 To Support the Coil and Make the decoiling

 Loading Capacity: 5-10 tons

 Inner Diameter: 450-550mm (manual adjustable)

 Need to use a crane to lift the material manually

 Compared with our company product, other company product doesn't have the brake, and it will appear the deposition of material



Electric Decoiler

 The structure is simple, the cost is low, and the motor provides power to actively decoil and discharge materials.

 When the size of the steel coil changes in use, the speed will be unstable and easy to break. Electric decoiler is generally not recommended.

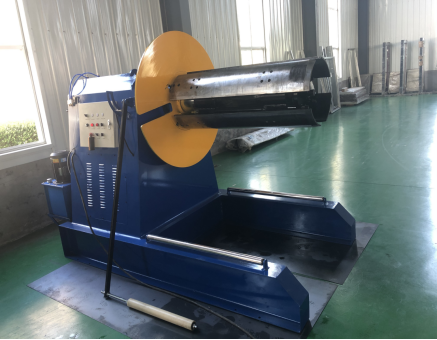

Hydraulic Decoiler

 Active Type

 To start and stop working controlled by motor reducer

 To support the coil and make the decoiling

 Loading capacity: 5-15 tons

 Inner diameter: 450-550mm (adjustable)

 Save labor

 The working speed of decoiler is adjustable

 Rotary arm design is convenient for loading and unloading steel coils, which can be easily operated and used by one person;

 The core tension is driven by hydraulic pressure, and the hydraulic system is provided with a pressure maintaining device, so that the core tension can not be relaxed after the motor of the hydraulic station stops. The hydraulic motor provides power to actively decoil and discharge materials, which can automatically stop and start according to the running speed of the main roll forming machine, and the stepless variable speed motor can also adjust the output speed of the motor at any time.
