Sheet Metal IBR Roll Forming Machine Main Roll Forming System:

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Length of the main part: about 6500х1450х1500

Weight of main part: 3.8 tons

Voltage: 380v 50hz 3 phase

Roller fixer: middle plate

Frame: 350 H steel welded

Drive mode: chain

Material of rollers:45# steel, surface hard chromium plating.

Material of shafts: 45# steel

Diameter of shafts: φ80mm

Number of rollers: 13 rollers

Main power: 5.5kw

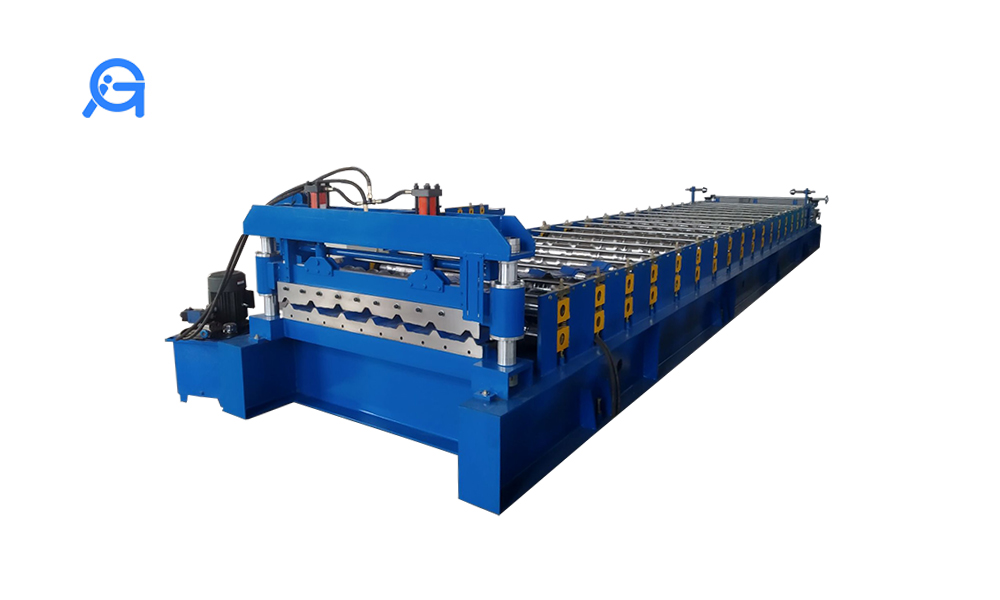

Sheet Metal IBR Roll Forming Machine

Sheet Metal IBR Roll Forming Machine Shearing Mechanism:

Feature : Ensure stability, precision and cutting speed

Function : Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12 quenched

Power supply : hydraulic power

Components:It contains one set of blade, one hydraulic tank and one cutter machine.

Sheet Metal IBR Roll Forming Machine Our Service:

a. If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.

b. Without visiting, we will send you user manual and video to teach you to install and operate.

c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

d. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.
