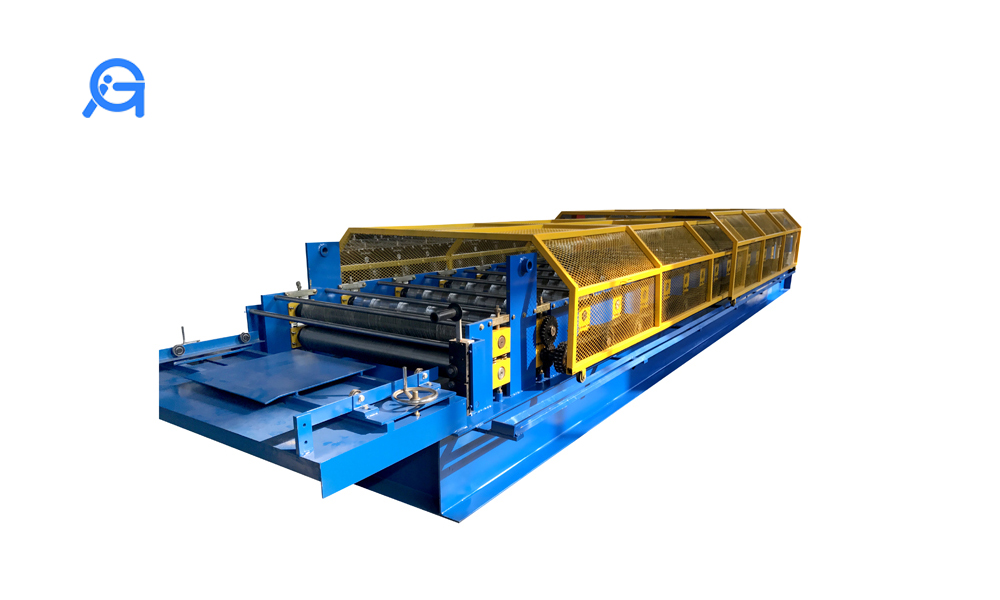

Glazed step tile roll forming machine​

Glazed step tile roll forming machine​

 Thickness: 0.4-0.6mm
 Yield strength: 235Mpa
 Roller material: No.45 forged steel
 Forming speed: About 10m/min

Product Details

Glazed step tile roll forming machine consists of uncoiler and its base, coil sheet guiding equipment, film covered device, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, controlling system, supporter table.
Glazed step tile roll forming machine

Glazed step tile roll forming machine

Technical Parameter:
Type: Pre-painted steel coil & galvanized coils
Thickness: 0.4-0.6mm
Yield strength: 235Mpa
Roller material: No.45 forged steel
Forming speed: About 10m/min
Output speed: 0-3m/min
Speed adjusting mode: AC Frequency
Roller drive: Decelerating motor + Chain drive
Cutting mode: Hydraulic cutting
Cutter material: Cr12 mould steel
Length measurement: Encoder
Control mode: Mitsubishi PLC
Operating mode: Button + Mitsubishi Touch screen
Main motor: 5.5KW
Hydraulic station motor: 5.5KW
Glazed step tile roll forming machine

Components
Decoiler    1set
Feeding & guiding device    1set
Main roll forming machine    1set
Hydraulic pressing system    1set
Hydraulic cutting system    1set
Controlling system    1set
Run out table    1set


Advantages

1.Certificate: ISO 9001, CE,
2. Lifetime services
3. Introduced Mitsubishi PLC with touch screen to machine controll system.
4.  Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade.  Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available


Glazed step tile roll forming machine

Glazed step tile roll forming machine


Product Features

1.Precise forming.
2. High-solid forming stand guarantees the good and uniform quality of final products
3. The operation automatically minimizes the tolerance of cutting length.

Products Feature
1. A stylish and attractive design,giving the apperance of a traditional roof tile.
2. Resistant to frost,heat,hail and gales : 100% waterproof, thanks to the lateral run-off channel on each sheet for several models.
3. The raw material can be in different color,  elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa, civil construction etc. consists of uncoiler and its base, coil sheet guiding equipment, film covered device, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, controlling system, supporter table.
